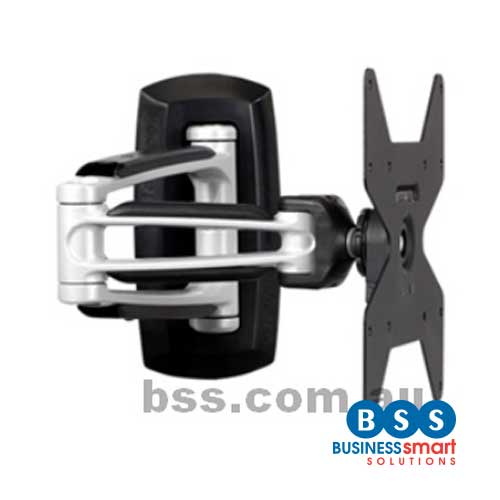

Highly Flexible LCD Wall Mount (Screen Size ≥ 17

ATDEC Telehook TH-1040-VFM

Made of extremely durable die cast aluminium, our Telehookscreen mounting solution offers superior technology alongside unquestionable ergonomics and aesthetics. Suitable for wall-mounted setup, Telehook TH-1040-VFM is built with three pivot joints and a ball joint mechanism which offers you especially infinite adjustment and complete control over tilt, pan and orientation of your LED/LCD screens. You can extend your display up to a certain length from its wall pivot; tilt it to a certain angle; or even rotate it from landscape to portrait, or vice versa.

More importantly, screen adjustment and control can be done smoothly and effortlessly with Telehook’s Smooth Glide thrust bearing technology, even with a heavy display screenor signage.

Weight 3.2 kg
Dimensions 26 × 55 cm
Weight

3.2 kg
0 People watching this product now!
SKU: BSS-TH-1040-VFM Categories: ,
Specifications
Full Motion mounting
  • Designed for screens 17″ (43.2cm) or larger
  • Supports displays weighing up to 25kg (55lbs)
  • Adjustable wall extension from 102mm (4″) to 444mm (17.5″)
  • Features hidden wall mounting points and integrated cable management
Enhanced viewing adjustment
  • Articulated arm with three pivot points
  • Display head allows +/-20º tilt and pan adjustment
  • Display head allows for full screen rotation
Detachable display head
  • Quick Release mounting head with security screw for enhanced theft resistance
  • Allows easy display set-up, cabling and maintenance
Easy to Install
  • Designed for user installation
  • Supports displays with standard VESA mounting hole configurations (WxH) 75x75mm, 100x100mm, 200x100mm & 200x200mm
  • Also supports displays with VESA configurations 200×300; 200×400; 300×200; 300×300; 300×400; 400×200; 400×300 & 400×400 via an optional adaptor
  • Shipped with installation guide and mounting hardware for masonry wall and timber stud attachment
Durable Design
  • Die cast aluminium construction with steel base pl



Download

telehook-th-1040-vfm-product-brochure
Size: 464.03 KB Format : PDF
Preview

Contact us
For more detailed specifications and information about the product, please contact BSS through info@bss.com.au or give us a call at +61 (2) 9516 2280.
